日本SEISA大阪聯軸器M系列的特點:
1.。形狀與JIS B 1453“齒輪形軸接頭”的形式SS、SE、CC、CE形狀相同。目錄顯示以JIS形式前后加上GC、M的GC-SSM、GC-SEM、GC-CCM、GC-CEM這4種形式為基礎,還有其他各種形式。
2.。形號的稱呼用聯軸器外殼外徑尺寸表示。軸部的配合尺寸按照J(rèn)IS規格,減小了聯軸器外徑尺寸。因此,與JIS標準相比,體積小,重量輕,積極配合降低貴公司的成本。
3.。與聯軸器殼體寬度相比,由于聯軸器中心長度較長,所以通過使聯軸器殼體在凸臺長度內移動,可以容易地對中。另外,齒部的檢查也很容易。
4.。用于磨床電機的GC-SMM型號符合JEM-1109標準。
5.。標準化防漏油罩,防止漏油從鍵槽泄漏。
6.。通過進行熱處理,使傳輸容量增加的MH形標準化。

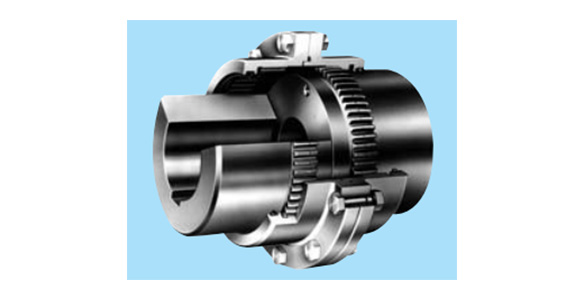

GC-SSMイメージ
蘇州

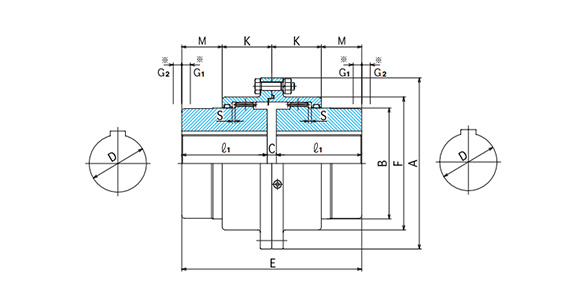

寸法図
蘇州上野機電設備有限公司銷售電話:17895046997 劉經理
形番 | 各部寸法 | 貯油量 (l) | 質量 (kg) | GD2 (kgf?m2) | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
外徑 (mm) A | E | l1 | C | B | F | K | M | S | G1 | G2 | |||
100 | 98 | 45 | 8 | 46 | 67 | 34 | 15 | 2 | 4 | 10 | 0.043 | 2.9 | 0.0112 |
112 | 108 | 50 | 8 | 58 | 79 | 40 | 14 | 2 | 1 | 14 | 0.055 | 4.3 | 0.0198 |
125 | 134 | 63 | 8 | 70 | 92 | 43 | 24 | 2.5 | 9 | 7 | 0.072 | 6.6 | 0.0353 |
140 | 150 | 71 | 8 | 80 | 107 | 47 | 28 | 2.5 | 11 | 7 | 0.11 | 9.3 | 0.0612 |
160 | 170 | 80 | 10 | 95 | 120 | 52 | 33 | 3 | 12 | 7 | 0.14 | 14 | 0.113 |
180 | 190 | 90 | 10 | 105 | 134 | 56 | 39 | 3 | 15 | 5 | 0.18 | 19 | 0.191 |
200 | 210 | 100 | 10 | 120 | 149 | 61 | 44 | 3 | 18 | 5 | 0.24 | 26 | 0.315 |
224 | 236 | 112 | 12 | 145 | 174 | 65 | 53 | 4 | 25 | 1 | 0.36 | 39 | 0.599 |
250 | 262 | 125 | 12 | 165 | 200 | 74 | 57 | 4 | 28 | 1 | 0.53 | 55 | 1.08 |
280 | 294 | 140 | 14 | 190 | 224 | 82 | 65 | 4.5 | 28 | 1 | 0.69 | 81 | 2.06 |
315 | 356 | 170 | 16 | 225 | 260 | 98 | 80 | 5.5 | 33 | 1 | 1.1 | 129 | 4.24 |
355 | 396 | 190 | 16 | 250 | 288 | 108 | 90 | 5.5 | 34 | 1 | 1.3 | 177 | 7.13 |
400 | 418 | 200 | 18 | 285 | 329 | 114 | 95 | 6.5 | 39 | 0 | 2 | 242 | 12.5 |
