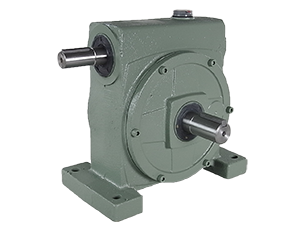

製品仕様
中心距離 | 37 |
---|---|
減速比 | 15 |
製品重量 | 3.0 |
慣性モーメント | 3.5×10^-5kg?㎡ |
GD^2 | 1.4×10^-4kgf?㎡ |
バックラッシュ | 0.0024~0.0060rad |
出力軸許容片持荷重 | 690 |
基準作用位置 | 34 |
起動効率 | 39 |
油種 | ボンノック M320 |
油量(?) | 0.15 |
セルフロック | セルフロックは別表を參照下さい。 |
蘇州上野機電設備有限公司銷售電話:17895046997 劉經理
回転數 (min^-1) | 入力 (kW) | 出力トルク (N?m) | 伝達効率 (%) |
---|---|---|---|
1800 | 0.30 | 15.7 | 65 |
1500 | 0.27 | 16.7 | 64 |
1200 | 0.24 | 17.6 | 62 |
1000 | 0.22 | 19.6 | 61 |
500 | 0.13 | 22.5 | 57 |
100 | 0.036 | 22.5 | 44 |
