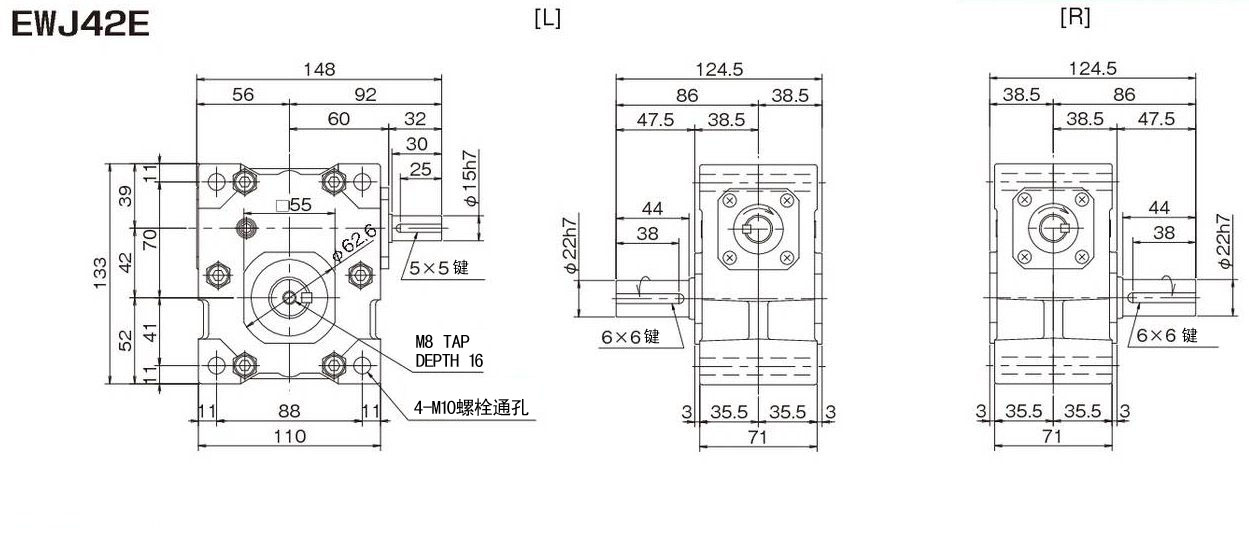

圖紙(尺寸大?。?/p>
蘇州上野機電設備有限公司銷售電話:17895046997 劉經理
減 速 部 | 潤滑方式 | 油浴方式·注油出貨 |
---|---|---|
DAPHNE ALPHA OILTE260 | ||
鍵規格 | 新JIS普通 JIS B1301-1976(中實軸部用鍵一同出貨) | |
涂裝規格 | 蒙塞爾2.5G6/3(綠色) | |
靜電粉末噴涂:環氧聚酯類 | ||
防銹規格 | 防銹期 室內保管6個月(工廠出廠后) | |
外部防銹處理:涂抹防銹脂 內部防銹處理:填充潤滑油后密封 | ||
周 圍 條 件 | 設置場所 | 室內 |
環境溫度 | -10℃~50℃ | |
環境濕度 | 95%以下(無結露) | |
高 度 | 海拔1000m以下 | |
環 境 | 無腐蝕性及爆炸性氣體·蒸氣及無結露,塵埃少 | |
安裝方式 | 自由安裝 |
減速比 | 輸入1750 r/min | 輸入1450 r/min | 輸入1150 r/min | 輸入950 r/min | 輸入500 r/min | 輸入100 r/min | 大概 質量 kg | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
輸入 kW | 輸出扭矩 | 輸入 kW | 輸出扭矩 | 輸入 kW | 輸出扭矩 | 輸入 kW | 輸出扭矩 | 輸入 kW | 輸出扭矩 | 輸入 kW | 輸出扭矩 | ||||||||
N?m | {kgf?m} | N?m | {kgf?m} | N?m | {kgf?m} | N?m | {kgf?m} | N?m | {kgf?m} | N?m | {kgf?m} | ||||||||
30 | 0.40 | 47.3 | 4.83 | 0.37 | 51.1 | 5.21 | 0.33 | 57.0 | 5.82 | 0.30 | 61.6 | 6.29 | 0.19 | 69.0 | 7.04 | 0.045 | 69.0 | 7.04 | 3.2 |
蘇州上野機電設備有限公司銷售型號:
SWJ42E20DF | SWJ42E20DF | SWJ42E20DF |
EWJ42E25L | EWJ42E25L | EWJ42E25L |
EWJ42E25R | EWJ42E25R | EWJ42E25R |
EWJ42E25LR | EWJ42E25LR | EWJ42E25LR |
中空 | 中空 | 中空 |
SWJ42E25DF | SWJ42E25DF | SWJ42E25DF |
EWJ42E30L | EWJ42E30L | EWJ42E30L |
EWJ42E30R | EWJ42E30R | EWJ42E30R |
EWJ42E30LR | EWJ42E30LR | EWJ42E30LR |
中空 | 中空 | 中空 |
SWJ42E30DF | SWJ42E30DF | SWJ42E30DF |
EWJ42E40L | EWJ42E40L | EWJ42E40L |
EWJ42E40R | EWJ42E40R | EWJ42E40R |
EWJ42E40LR | EWJ42E40LR | EWJ42E40LR |
中空 | 中空 | 中空 |
SWJ42E40DF | SWJ42E40DF | SWJ42E40DF |
1/50 | 1/50 | 1/50 |
EWJ42E50L | EWJ42E50L | EWJ42E50L |
EWJ42E50R | EWJ42E50R | EWJ42E50R |
EWJ42E50LR | EWJ42E50LR | EWJ42E50LR |
中空 | 中空 | 中空 |
SWJ42E50DF | SWJ42E50DF | SWJ42E50DF |
EWJ42E60L | EWJ42E60L | EWJ42E60L |
EWJ42E60R | EWJ42E60R | EWJ42E60R |
EWJ42E60LR | EWJ42E60LR | EWJ42E60LR |
中空 | 中空 | 中空 |
SWJ42E60DF | SWJ42E60DF | SWJ42E60DF |
EWJ63E10L | EWJ63E10L | EWJ63E10L |
EWJ63E10R | EWJ63E10R | EWJ63E10R |
EWJ63E10LR | EWJ63E10LR | EWJ63E10LR |
EWJ63V10LU | EWJ63V10LU | EWJ63V10LU |
EWJ63V10LD | EWJ63V10LD | EWJ63V10LD |
EWJ63V10LUD | EWJ63V10LUD | EWJ63V10LUD |
EWJ63V10RU | EWJ63V10RU | EWJ63V10RU |
EWJ63V10RD | EWJ63V10RD | EWJ63V10RD |
EWJ63V10RUD | EWJ63V10RUD | EWJ63V10RUD |
中空 | 中空 | 中空 |
SWJ63E10DF | SWJ63E10DF | SWJ63E10DF |
EWJ63E15L | EWJ63E15L | EWJ63E15L |
EWJ63E15R | EWJ63E15R | EWJ63E15R |
EWJ63E15LR | EWJ63E15LR | EWJ63E15LR |
EWJ63V15LU | EWJ63V15LU | EWJ63V15LU |
EWJ63V15LD | EWJ63V15LD | EWJ63V15LD |
EWJ63V15LUD | EWJ63V15LUD | EWJ63V15LUD |
EWJ63V15RU | EWJ63V15RU | EWJ63V15RU |
EWJ63V15RD | EWJ63V15RD | EWJ63V15RD |
EWJ63V15RUD | EWJ63V15RUD | EWJ63V15RUD |
中空 | 中空 | 中空 |
SWJ63E15DF | SWJ63E15DF | SWJ63E15DF |
EWJ63E20L | EWJ63E20L | EWJ63E20L |
EWJ63E20R | EWJ63E20R | EWJ63E20R |
EWJ63E20LR | EWJ63E20LR | EWJ63E20LR |
EWJ63V20LU | EWJ63V20LU | EWJ63V20LU |
EWJ63V20LD | EWJ63V20LD | EWJ63V20LD |
EWJ63V20LUD | EWJ63V20LUD | EWJ63V20LUD |
EWJ63V20RU | EWJ63V20RU | EWJ63V20RU |
EWJ63V20RD | EWJ63V20RD | EWJ63V20RD |
EWJ63V20RUD | EWJ63V20RUD | EWJ63V20RUD |
中空 | 中空 | 中空 |
SWJ63E20DF | SWJ63E20DF | SWJ63E20DF |
EWJ63E25L | EWJ63E25L | EWJ63E25L |
EWJ63E25R | EWJ63E25R | EWJ63E25R |
EWJ63E25LR | EWJ63E25LR | EWJ63E25LR |
EWJ63V25LU | EWJ63V25LU | EWJ63V25LU |
EWJ63V25LD | EWJ63V25LD | EWJ63V25LD |
EWJ63V25LUD | EWJ63V25LUD | EWJ63V25LUD |
EWJ63V25RU | EWJ63V25RU | EWJ63V25RU |
EWJ63V25RD | EWJ63V25RD | EWJ63V25RD |
EWJ63V25RUD | EWJ63V25RUD | EWJ63V25RUD |
中空 | 中空 | 中空 |
SWJ63E25DF | SWJ63E25DF | SWJ63E25DF |
EWJ63E30L | EWJ63E30L | EWJ63E30L |
EWJ63E30R | EWJ63E30R | EWJ63E30R |
EWJ63E30LR | EWJ63E30LR | EWJ63E30LR |
EWJ63V30LU | EWJ63V30LU | EWJ63V30LU |
EWJ63V30LD | EWJ63V30LD | EWJ63V30LD |
EWJ63V30LUD | EWJ63V30LUD | EWJ63V30LUD |
EWJ63V30RU | EWJ63V30RU | EWJ63V30RU |
EWJ63V30RD | EWJ63V30RD | EWJ63V30RD |
EWJ63V30RUD | EWJ63V30RUD | EWJ63V30RUD |
中空 | 中空 | 中空 |
SWJ63E30DF | SWJ63E30DF | SWJ63E30DF |
EWJ63E40L | EWJ63E40L | EWJ63E40L |
EWJ63E40R | EWJ63E40R | EWJ63E40R |
EWJ63E40LR | EWJ63E40LR | EWJ63E40LR |
EWJ63V40LU | EWJ63V40LU | EWJ63V40LU |
EWJ63V40LD | EWJ63V40LD | EWJ63V40LD |
EWJ63V40LUD | EWJ63V40LUD | EWJ63V40LUD |
EWJ63V40RU | EWJ63V40RU | EWJ63V40RU |
EWJ63V40RD | EWJ63V40RD | EWJ63V40RD |
EWJ63V40RUD | EWJ63V40RUD | EWJ63V40RUD |
中空 | 中空 | 中空 |
SWJ63E40DF | SWJ63E40DF | SWJ63E40DF |
EWJ63E50L | EWJ63E50L | EWJ63E50L |
EWJ63E50R | EWJ63E50R | EWJ63E50R |
EWJ63E50LR | EWJ63E50LR | EWJ63E50LR |
EWJ63V50LU | EWJ63V50LU | EWJ63V50LU |
EWJ63V50LD | EWJ63V50LD | EWJ63V50LD |
EWJ63V50LUD | EWJ63V50LUD | EWJ63V50LUD |
EWJ63V50RU | EWJ63V50RU | EWJ63V50RU |
EWJ63V50RD | EWJ63V50RD | EWJ63V50RD |
EWJ63V50RUD | EWJ63V50RUD | EWJ63V50RUD |
中空 | 中空 | 中空 |
SWJ63E50DF | SWJ63E50DF | SWJ63E50DF |
EWJ63E60L | EWJ63E60L | EWJ63E60L |
EWJ63E60R | EWJ63E60R | EWJ63E60R |
EWJ63E60LR | EWJ63E60LR | EWJ63E60LR |
EWJ63V60LU | EWJ63V60LU | EWJ63V60LU |
EWJ63V60LD | EWJ63V60LD | EWJ63V60LD |
EWJ63V60LUD | EWJ63V60LUD | EWJ63V60LUD |
EWJ63V60RU | EWJ63V60RU | EWJ63V60RU |
EWJ63V60RD | EWJ63V60RD | EWJ63V60RD |
EWJ63V60RUD | EWJ63V60RUD | EWJ63V60RUD |
中空 | 中空 | 中空 |
SWJ63E60DF | SWJ63E60DF | SWJ63E60DF |
