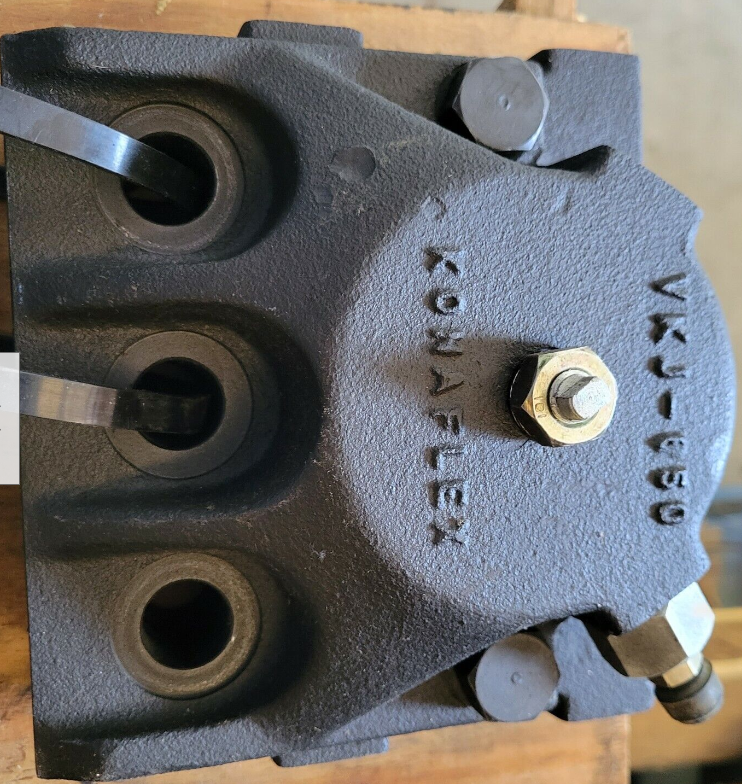

VKJ-650_Hydraulic-disc-Brake made in Finland 芬蘭

 Konaflex液壓盤式制動器VKJ-650 全新正品 已經剎車片

參數：

芬蘭Masino-Konaflex Oy   液壓盤式制動器 VKJ-650， 有兩種規格標準型和側面安裝型，

有幾種不同的摩擦片選項可供選擇。

Konaflex液壓盤式制動器VKJ-650摩擦片具有較大的摩擦面積：2 x 110 cm2 VKJ -650 （ 28000 N/100 bar）

Masino-

KONAFLEX VKJ-650 DISC BRAKE

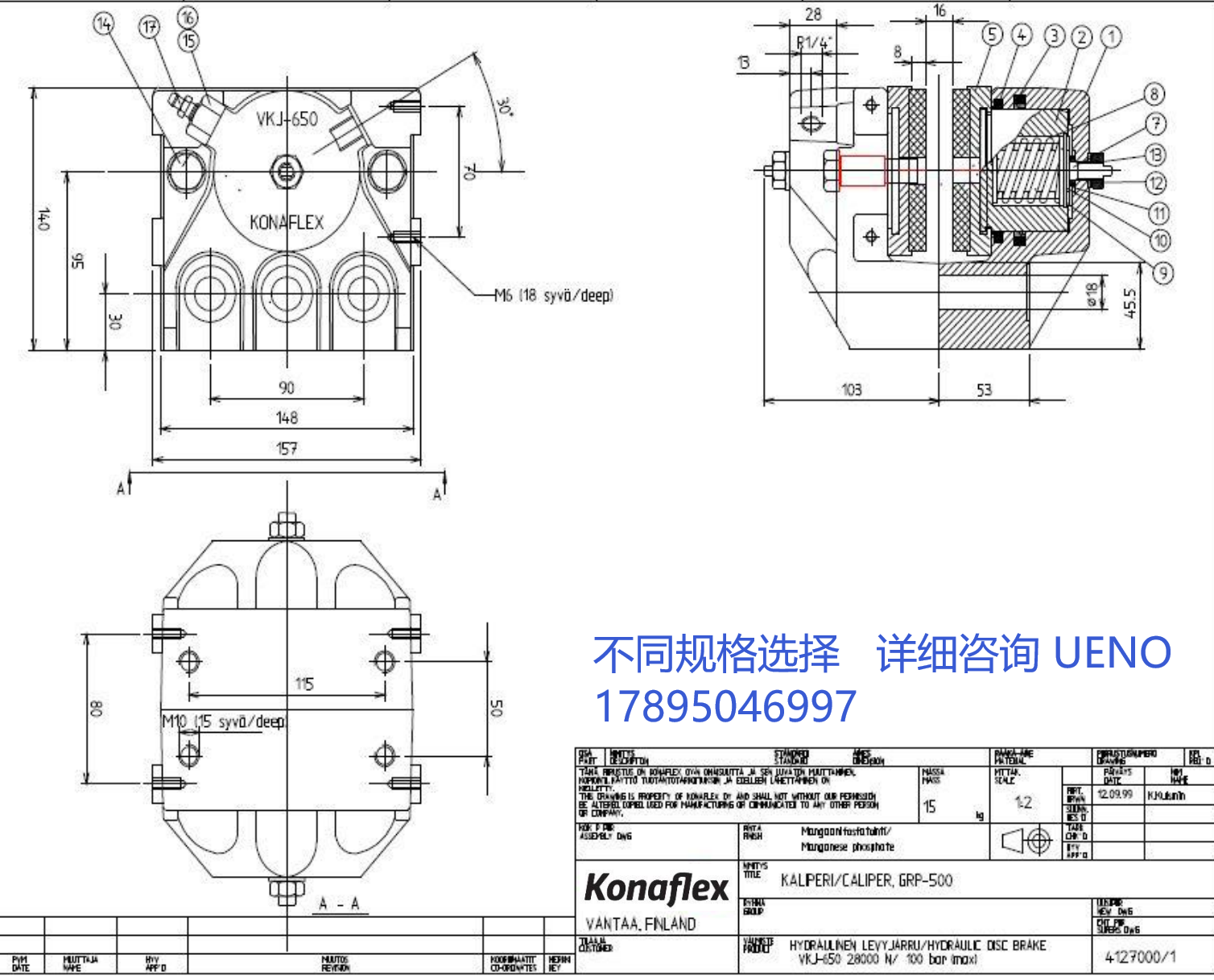

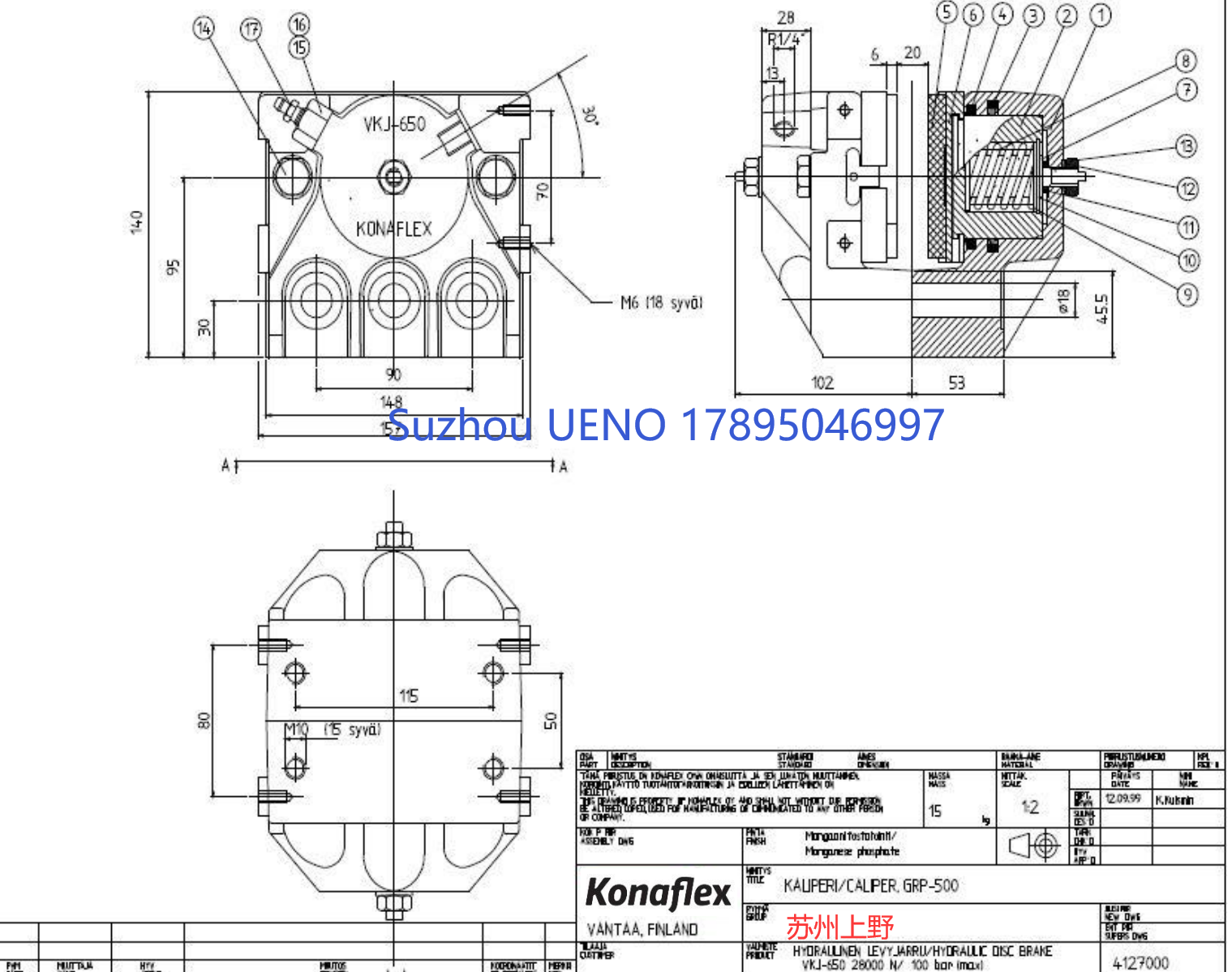

Mounting and maintenance of VKJ-650 hydraulic brake

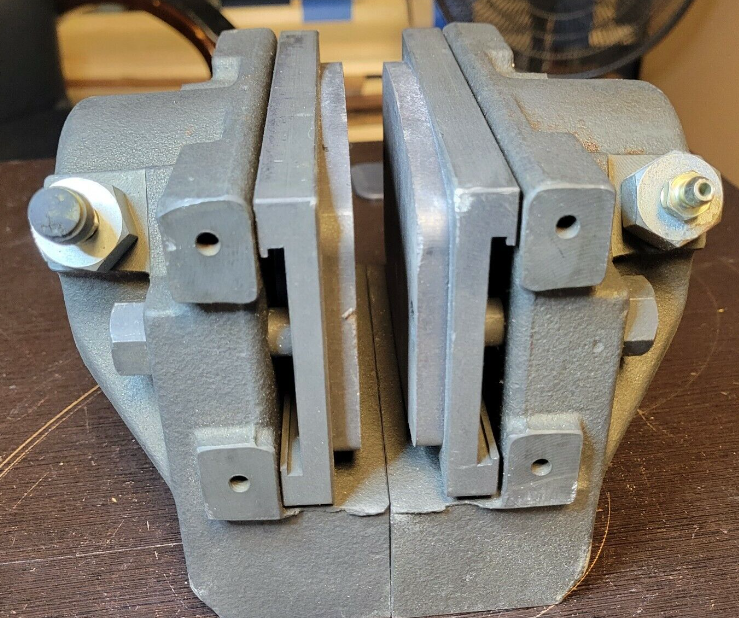

VKJ-650 disc brake is activated directly with hydraulic pressure. The brake consists of two identical brake

halves and the achieved brake torque is directly relevant to the hydraulic pressure used. The basic brake is

designed for a brake disc not thinner than 12 mm, but it can be used with thicker discs by using distance

plates between the brake halves.

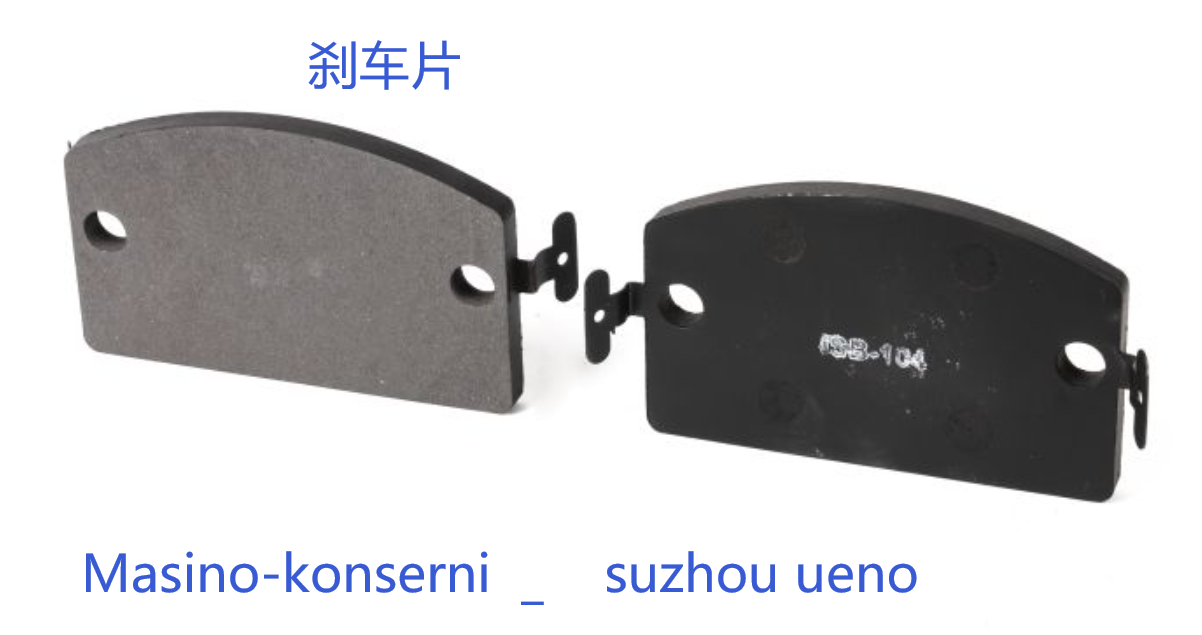

剎車片：
