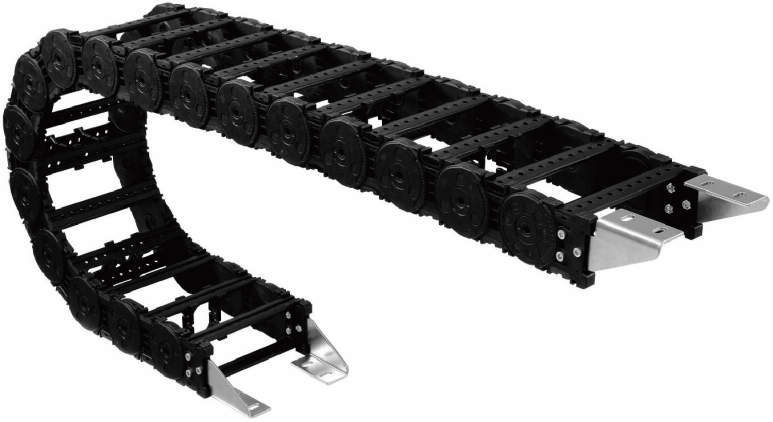

低噪音低出塵低振動的TSUBAKI椿本塑料拖鏈型號：TKMK47H28DE24R100TC

蘇州上野機電設備有限公司詢價咨詢電話；17895046997    劉先生    同微信

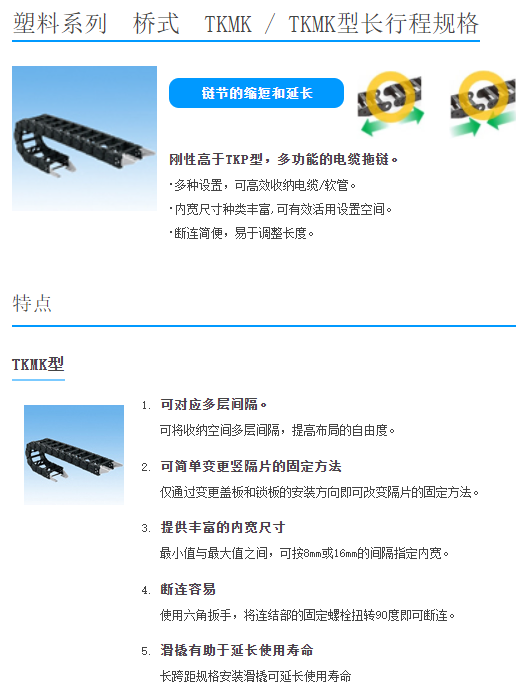

特點：

?全尺寸可多級隔開。

?隔板可以選擇滑動或完全固定。而且是可以特殊寬度等多功能的電纜。

標注

滑動部如果有鐵粉或粉塵等促進磨損等物質，會造成異常磨損或屈曲。請采取措施防止上述物質的堆積。

使用注意事項

※使用時請注意以下事項。

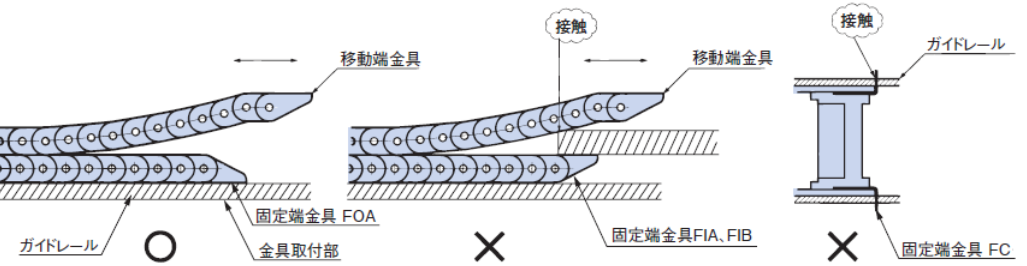

• ■ 務必設置導軌。

• 采用椿本特殊導軌更加方便。如客戶自行制作，請參考上圖。

• ■ 請注意H尺寸。

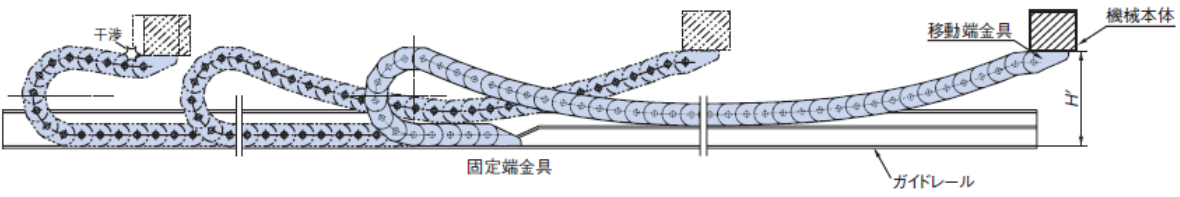

• 與標準設置時的H尺寸不同。請按照長跨距規格一覽表的尺寸設置。此尺寸過高或過低會引起電纜拖鏈的屈曲或上浮，造成拖鏈的破損。

• ■ 請確保充分的富余長度（K尺寸）

• 與標準設置時的富余長度不同。所設定的鏈節數需等同或大于長跨距規格一覽表中的尺寸。如果尺寸小，當移動端在無支撐跨距長度最短的位置上時，鏈節會被過度反向彎曲，造成拖鏈的破損。

• ■ 需要特型移動端支架。(部分型號除外)

• 特殊型號的移動端支架可朝兩個方向彎曲。TKP45H25，TKP58H39的鏈銷突出尺寸與標準型不同。

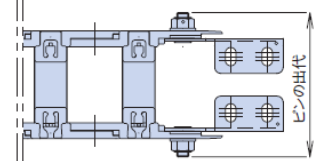

尺寸		鏈銷的突出
TKP45H26	W38	內寬 W+40
	上述以外	內寬 W+42
TKP58H39		內寬 W+45
TKP68H46 (使用鋼制支架時)		內寬 W+46

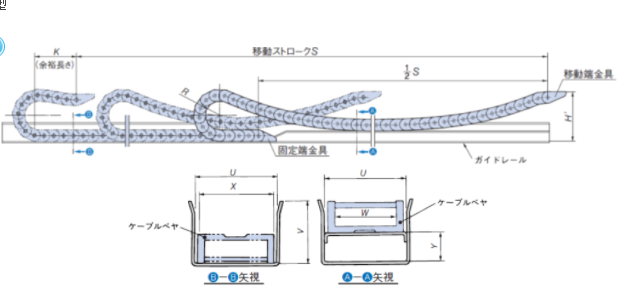

長跨距/滑橇規格

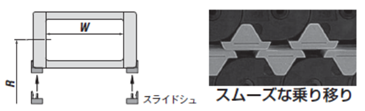

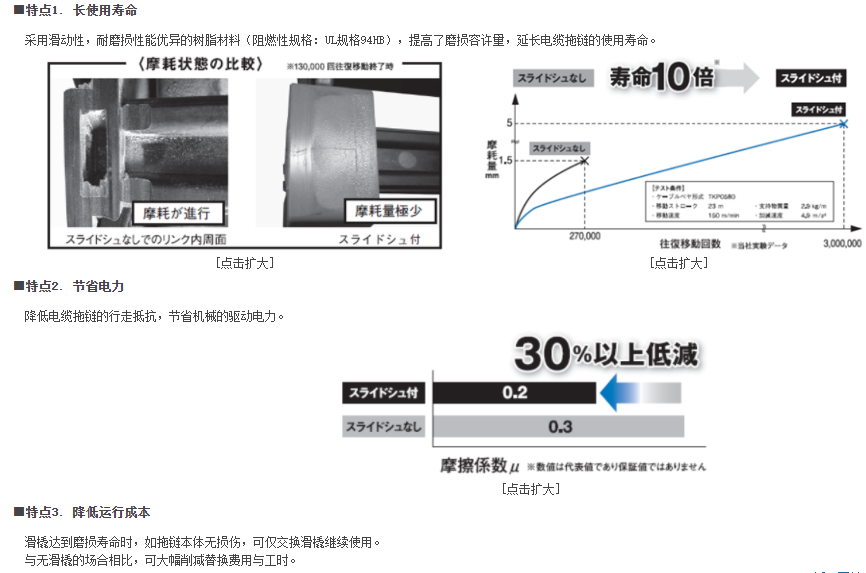

長跨距/滑橇規格適于長行程，可高速移動，延長使用壽命，節省電力與運營成本，有助于降低全體成本與環境負荷。
