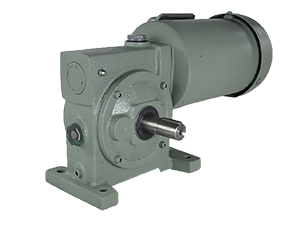

PNB (帶制動器)1/10~1/200
也有帶制動器,型號、KW、速比根據用途分為多種類型。 電機還生產異電壓及特殊電機。
全國服務熱線:0512-6605 1469
在線咨詢製品記號 | 中心距離 | 型番 | 減速比 | 実減速比 | 入力 | 出力軸回転數 | 出力軸許容 | 製品重量 | 油量 |
(製品記號について) | (kW) | (min??) | トルク | (kg) | (?) | ||||
(N?m) | |||||||||
53 | 1 | 10 | 10 | 0.1 | 150.00 | 4.90 | 16kg | 0.3 | |
PNB011-10 | 180.00 | 4.90 | |||||||
53 | 1 | 15 | 15 | 0.1 | 100.00 | 7.84 | 16kg | 0.3 | |
PNB011-15 | 120.00 | 6.86 | |||||||
53 | 1 | 20 | 20 | 0.1 | 75.00 | 8.82 | 16kg | 0.3 | |
PNB011-20 | 90.00 | 6.86 | |||||||
53 | 1 | 25 | 25 | 0.1 | 60.00 | 11.80 | 16kg | 0.3 | |
PNB011-25 | 72.00 | 9.80 | |||||||
53 | 1 | 30 | 30 | 0.1 | 50.00 | 12.70 | 16kg | 0.3 | |
PNB011-30 | 60.00 | 10.70 | |||||||
53 | 1 | 40 | 40 | 0.1 | 37.50 | 14.70 | 16kg | 0.3 | |
PNB011-40 | 45.00 | 11.70 | |||||||
53 | 1 | 50 | 50 | 0.1 | 30.00 | 18.6(15.1) | 16kg | 0.3 | |
PNB011-50 | 36.00 | 15.6(13.0) | |||||||
53 | 1 | 60 | 60 | 0.1 | 25.00 | (15.60) | 16kg | 0.3 | |
PNB011-60 | 30.00 | (13.70) | |||||||
53 | 1 | 80 | 80 | 0.1 | 18.70 | 31.40 | 16kg | 0.3 | |
PNB011-80 | 22.50 | 26.50 | |||||||
53 | 1 | 100 | 100 | 0.1 | 15.00 | 42.10 | 16kg | 0.3 | |
PNB011-100 | 18.00 | 35.30 | |||||||
53 | 1 | 120 | 120 | 0.1 | 12.50 | 47.00 | 16kg | 0.3 | |
PNB011-120 | 15.00 | 39.20 | |||||||
53 | 1 | 160 | 160 | 0.1 | 9.38 | 54.90 | 16kg | 0.3 | |
PNB011-160 | 11.20 | 46.10 | |||||||
53 | 1 | 200 | 200 | 0.1 | 7.50 | 70.6(43.1) | 16kg | 0.3 | |
PNB011-200 | 9.00 | 59.8(37.1) | |||||||
53 | 1 | 10 | 10 | 0.2 | 150.00 | 9.80 | 18kg | 0.3 | |
PNB021-10 | 180.00 | 8.82 | |||||||
53 | 1 | 15 | 15 | 0.2 | 100.00 | 14.70 | 18kg | 0.3 | |
PNB021-15 | 120.00 | 12.70 | |||||||
53 | 1 | 20 | 20 | 0.2 | 75.00 | 17.60 | 18kg | 0.3 | |
PNB021-20 | 90.00 | 14.70 | |||||||
53 | 1 | 25 | 25 | 0.2 | 60.00 | 23.50 | 18kg | 0.3 | |
PNB021-25 | 72.00 | 19.60 | |||||||
53 | 1 | 30 | 30 | 0.2 | 50.00 | 24.50 | 18kg | 0.3 | |
PNB021-30 | 60.00 | 20.50 | |||||||
53 | 1 | 40 | 40 | 0.2 | 37.50 | 28.40 | 18kg | 0.3 | |
PNB021-40 | 45.00 | 24.50 | |||||||
53 | 1 | 50 | 50 | 0.2 | 30.00 | 36.2(30.2) | 18kg | 0.3 | |
PNB021-50 | 36.00 | 30.3(26.0) | |||||||
53 | 1 | 60 | 60 | 0.2 | 25.00 | (30.30) | 18kg | 0.3 | |
PNB021-60 | 30.00 | (26.40) | |||||||
60 | 2 | 80 | 80 | 0.2 | 18.70 | 73.50 | 21kg | 0.5 | |
PNB022-80 | 22.50 | 60.80 | |||||||
60 | 2 | 100 | 100 | 0.2 | 15.00 | 87.20 | 21kg | 0.5 | |
PNB022-100 | 18.00 | 72.50 | |||||||
60 | 2 | 120 | 120 | 0.2 | 12.50 | 92.10 | 21kg | 0.5 | |
PNB022-120 | 15.00 | 77.40 | |||||||
60 | 2 | 160 | 160 | 0.2 | 9.38 | 108(80.6) | 21kg | 0.5 | |
PNB022-160 | 11.20 | 88.2(70.3) | |||||||
60 | 2 | 200 | 200 | 0.2 | 7.50 | (118.00) | 21kg | 0.5 | |
PNB022-200 | 9.00 | (98.00) | |||||||
60 | 2 | 10 | 10 | 0.4 | 150.00 | 20.60 | 23kg | 0.5 | |
PNB042-10 | 180.00 | 17.60 | |||||||
60 | 2 | 15 | 15 | 0.4 | 100.00 | 29.40 | 23kg | 0.5 | |
PNB042-15 | 120.00 | 24.50 | |||||||
60 | 2 | 20 | 20 | 0.4 | 75.00 | 36.30 | 23kg | 0.5 | |
PNB042-20 | 90.00 | 30.40 | |||||||
60 | 2 | 25 | 25 | 0.4 | 60.00 | 41.20 | 23kg | 0.5 | |
PNB042-25 | 72.00 | 34.30 | |||||||
60 | 2 | 30 | 30 | 0.4 | 50.00 | 47.00 | 23kg | 0.5 | |
PNB042-30 | 60.00 | 40.10 | |||||||
60 | 2 | 40 | 40 | 0.4 | 37.50 | 58.9(55.4) | 23kg | 0.5 | |
PNB042-40 | 45.00 | 50.8(47.5) | |||||||
60 | 2 | 50 | 50 | 0.4 | 30.00 | (59.70) | 23kg | 0.5 | |
PNB042-50 | 36.00 | (50.90) | |||||||
60 | 2 | 60 | 60 | 0.4 | 25.00 | (68.60) | 23kg | 0.5 | |
PNB042-60 | 30.00 | (58.80) | |||||||
76 | 3 | 80 | 80 | 0.4 | 18.70 | 137.00 | 26kg | 0.5 | |
PNB043-80 | 22.50 | 118.00 | |||||||
76 | 3 | 100 | 100 | 0.4 | 15.00 | 167.00 | 26kg | 0.5 | |
PNB043-100 | 18.00 | 137.00 | |||||||
76 | 3 | 120 | 120 | 0.4 | 12.50 | 186.00 | 26kg | 0.5 | |
PNB043-120 | 15.00 | 167.00 | |||||||
76 | 3 | 160 | 160 | 0.4 | 9.38 | 206PN(180) | 26kg | 0.5 | |
PNB043-160 | 11.20 | 176PN(154) | |||||||
76 | 3 | 200 | 200 | 0.4 | 7.50 | 265PN(199) | 26kg | 0.5 | |
PNB043-200 | 9.00 | 245PN(174) | |||||||
76 | 3 | 10 | 10 | 0.75 | 150.00 | 40.20 | 36kg | 0.5 | |
PNB073-10 | 180.00 | 33.30 | |||||||
76 | 3 | 15 | 15 | 0.75 | 100.00 | 56.90 | 36kg | 0.5 | |
PNB073-15 | 120.00 | 48.10 | |||||||
76 | 3 | 20 | 20 | 0.75 | 75.00 | 71.50 | 36kg | 0.5 | |
PNB073-20 | 90.00 | 60.80 | |||||||
76 | 3 | 25 | 25 | 0.75 | 60.00 | 88.20 | 36kg | 0.5 | |
PNB073-25 | 72.00 | 74.50 | |||||||
76 | 3 | 30 | 30 | 0.75 | 50.00 | 97.00 | 36kg | 0.5 | |
PNB073-30 | 60.00 | 82.30 | |||||||
76 | 3 | 40 | 40 | 0.75 | 37.50 | 118.00 | 36kg | 0.5 | |
PNB073-40 | 45.00 | 98.00 | |||||||
76 | 3 | 50 | 50 | 0.75 | 30.00 | 147PN(128) | 36kg | 0.5 | |
PNB073-50 | 36.00 | 118PN(111) | |||||||
76 | 3 | 60 | 60 | 0.75 | 25.00 | (206.00) | 36kg | 0.5 | |
PNB073-60 | 30.00 | (127.00) | |||||||
100 | 4 | 80 | 80 | 0.75 | 18.70 | 265.00 | 59kg | 1 | |
PNB074-80 | 22.50 | 225.00 | |||||||
100 | 4 | 100 | 100 | 0.75 | 15.00 | 323.00 | 59kg | 1 | |
PNB074-100 | 18.00 | 265.00 | |||||||
100 | 4 | 120 | 120 | 0.75 | 12.50 | 363.00 | 59kg | 1 | |
PNB074-120 | 15.00 | 304.00 | |||||||
100 | 4 | 160 | 160 | 0.75 | 9.38 | 480(347) | 59kg | 1 | |
PNB074-160 | 11.20 | 382(300) | |||||||
100 | 4 | 200 | 200 | 0.75 | 7.50 | 539(406) | 59kg | 1 | |
PNB074-200 | 9.00 | 480(352) | |||||||
100 | 4 | 10 | 10 | 1.5 | 150.00 | 79.40 | 67kg | 1 | |
PNB154-10 | 180.00 | 66.60 | |||||||
100 | 4 | 15 | 15 | 1.5 | 100.00 | 108.00 | 67kg | 1 | |
PNB154-15 | 120.00 | 94.00 | |||||||
100 | 4 | 20 | 20 | 1.5 | 75.00 | 147.00 | 67kg | 1 | |
PNB154-20 | 90.00 | 127.00 | |||||||
100 | 4 | 25 | 25 | 1.5 | 60.00 | 176.00 | 67kg | 1 | |
PNB154-25 | 72.00 | 147.00 | |||||||
100 | 4 | 30 | 30 | 1.5 | 50.00 | 186.00 | 67kg | 1 | |
PNB154-30 | 60.00 | 157.00 | |||||||
100 | 4 | 40 | 40 | 1.5 | 37.50 | 245(232) | 67kg | 1 | |
PNB154-40 | 45.00 | 206(199) | |||||||
100 | 4 | 50 | 50 | 1.5 | 30.00 | 294(273) | 67kg | 1 | |
PNB154-50 | 36.00 | 245(237) | |||||||
100 | 4 | 60 | 60 | 1.5 | 25.00 | 333(259) | 67kg | 1 | |
PNB154-60 | 30.00 | 274(240) | |||||||
123 | 5 | 80 | 80 | 1.5 | 18.70 | 549.00 | 73kg | 1.7 | |
PNB155-80 | 22.50 | 461.00 | |||||||
123 | 5 | 100 | 100 | 1.5 | 15.00 | 647.00 | 73kg | 1.7 | |
PNB155-100 | 18.00 | 549.00 | |||||||
123 | 5 | 120 | 120 | 1.5 | 12.50 | 715.00 | 73kg | 1.7 | |
PNB155-120 | 15.00 | 608.00 | |||||||
123 | 5 | 160 | 160 | 1.5 | 9.38 | 882(697) | 73kg | 1.7 | |
PNB155-160 | 11.20 | 833(640) | |||||||
123 | 5 | 200 | 200 | 1.5 | 7.50 | 970(697) | 73kg | 1.7 | |
PNB155-200 | 9.00 | 902(663) | |||||||
123 | 5 | 10 | 10 | 2.2 | 150.00 | 118.00 | 83kg | 1.7 | |
PNB225-10 | 180.00 | 98.00 | |||||||
123 | 5 | 15 | 15 | 2.2 | 100.00 | 167.00 | 83kg | 1.7 | |
PNB225-15 | 120.00 | 137.00 | |||||||
123 | 5 | 20 | 20 | 2.2 | 75.00 | 216.00 | 83kg | 1.7 | |
PNB225-20 | 90.00 | 186.00 | |||||||
123 | 5 | 25 | 25 | 2.2 | 60.00 | 284.00 | 83kg | 1.7 | |
PNB225-25 | 72.00 | 216.00 | |||||||
123 | 5 | 30 | 30 | 2.2 | 50.00 | 294.00 | 83kg | 1.7 | |
PNB225-30 | 60.00 | 245.00 | |||||||
123 | 5 | 40 | 40 | 2.2 | 37.50 | 372(353) | 83kg | 1.7 | |
PNB225-40 | 45.00 | 314(300) | |||||||
123 | 5 | 50 | 50 | 2.2 | 30.00 | 431(406) | 83kg | 1.7 | |
PNB225-50 | 36.00 | 363(350) | |||||||
123 | 5 | 60 | 60 | 2.2 | 25.00 | (490.00) | 83kg | 1.7 | |
PNB225-60 | 30.00 | (402.00) | |||||||
148 | 6 | 80 | 80 | 2.2 | 18.70 | 823.00 | 116kg | 3 | |
PNB226-80 | 22.50 | 696.00 | |||||||
148 | 6 | 100 | 100 | 2.2 | 15.00 | 1019.00 | 116kg | 3 | |
PNB226-100 | 18.00 | 853.00 | |||||||
148 | 6 | 120 | 120 | 2.2 | 12.50 | 1098.00 | 116kg | 3 | |
PNB226-120 | 15.00 | 931.00 | |||||||
148 | 6 | 160 | 160 | 2.2 | 9.38 | 1470.00 | 116kg | 3 | |
PNB226-160 | 11.20 | 1176.00 | |||||||
148 | 6 | 200 | 200 | 2.2 | 7.50 | 1539(1232) | 116kg | 3 | |
PNB226-200 | 9.00 | 1382(1139) | |||||||
148 | 6 | 10 | 10 | 3.7 | 150.00 | 206.00 | 128kg | 3 | |
PNB376-10 | 180.00 | 167.00 | |||||||
148 | 6 | 15 | 15 | 3.7 | 100.00 | 294.00 | 128kg | 3 | |
PNB376-15 | 120.00 | 245.00 | |||||||
148 | 6 | 20 | 20 | 3.7 | 75.00 | 372.00 | 128kg | 3 | |
PNB376-20 | 90.00 | 314.00 | |||||||
148 | 6 | 25 | 25 | 3.7 | 60.00 | 461.00 | 128kg | 3 | |
PNB376-25 | 72.00 | 392.00 | |||||||
148 | 6 | 30 | 30 | 3.7 | 50.00 | 529.00 | 128kg | 3 | |
PNB376-30 | 60.00 | 441.00 | |||||||
148 | 6 | 40 | 40 | 3.7 | 37.50 | 647.00 | 128kg | 3 | |
PNB376-40 | 45.00 | 549.00 | |||||||
148 | 6 | 50 | 50 | 3.7 | 30.00 | 784(735) | 128kg | 3 | |
PNB376-50 | 36.00 | 666(626) | |||||||
148 | 6 | 60 | 60 | 3.7 | 25.00 | 891(801) | 128kg | 3 | |
PNB376-60 | 30.00 | 757(745) | |||||||
175 | 7 | 80 | 80 | 3.7 | 18.70 | 1382.00 | 171kg | 4.8 | |
PNB377-80 | 22.50 | 1167.00 | |||||||
175 | 7 | 100 | 100 | 3.7 | 15.00 | 1637.00 | 171kg | 4.8 | |
PNB377-100 | 18.00 | 1382.00 | |||||||
175 | 7 | 120 | 120 | 3.7 | 12.50 | 1764.00 | 171kg | 4.8 | |
PNB377-120 | 15.00 | 1666.00 | |||||||
175 | 7 | 160 | 160 | 3.7 | 9.38 | 2254.00 | 171kg | 4.8 | |
PNB377-160 | 11.20 | 2156.00 | |||||||
175 | 7 | 200 | 200 | 3.7 | 7.50 | 2254(1993) | 171kg | 4.8 | |
PNB377-200 | 9.00 | 2156(1894) |
