HQ シリーズ

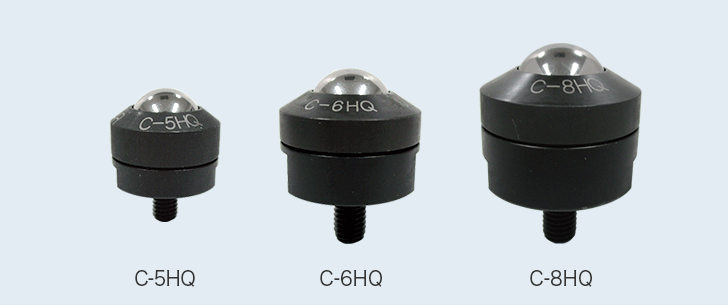

従來タイプにテーパー、取付用2面割を兼ね備えたシリーズです。
（単位：mm）
| 型式 | 許容荷重 | 最大荷重 | メインボール | 小ボール | 本體 | 自重 | A | B | C | D | E | F | G | H | I | j | データ ダウンロード （DXF/PDF） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
C-5HQ<br | 196N （20kgf） | 392N （40kgf） | スチール | スチール | スチール | 51g | Φ24 | Φ16 | 4 | 3 | 20.5 | 10 | 4.5 | 21 | M6 | 5/8”球(Φ15.875) | DXFPDF |
| C-6HQ<br | 490N （50kgf） | 980N （100kgf） | スチール | スチール | スチール | 117g | φ32 | Φ19 | 5 | 4 | 26 | 15 | 8.5 | 27 | M8 | 3/4”球(Φ19.05) | DXFPDF |
| C-8HQ<br | 785N （80kgf） | 1,568N （160kgf） | スチール | スチール | スチール | 286g | φ42 | Φ24 | 6.5 | 5.2 | 36 | 20 | 8 | 36 | M10 | 1”球(Φ25.4) | DXFPDF |
カタログ記載以外の材質についてはご相談ください。
