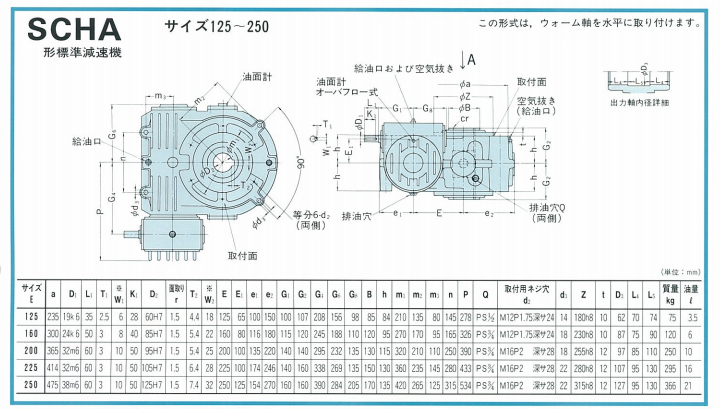

MHI二段蝸輪減速機SCHA型
MITSUBISHI三菱重工業MHI是一家綜合性的制造企業,具有100多年的生產制造機械產品的歷史。在日本“三菱”品牌是高品質、高技術的標志,隨著日本與世界各國的交流、三菱品牌也被世界所認同。
全國服務熱線:0512-6605 1469
在線咨詢MITSUBISHI三菱重工業MHI是一家綜合性的制造企業,具有100多年的生產制造機械產品的歷史。在日本“三菱”品牌是高品質、高技術的標志,隨著日本與世界各國的交流、三菱品牌也被世界所認同。
型號說明:
SUHW 99 R N - 31.5 L - SB
①SCHA:型號類型:SUHA形,SEUH形,SHVA形 ,SEHV形,SOHA形,SEOH形,SUHW形,SCUA形,SHVW形,SCHA形,SOHW形,SCOA形,SEUA形,SCUH形,SEHA形,SCHV形,SEOA形,SCOH形等系列
②99 :軸間距尺寸;
③R :輸出軸的輸出方式;
④N :回轉速度的高低;
⑤31.5:減速比;

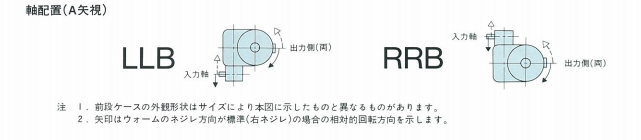

⑥L :蝸輪旋轉方向;
⑦ SB:軸端形狀。
蘇州上野機電設備有限公司銷售型號:
SCHA125LLB-6.3 | SCHA125RRB-6.3 |
SCHA125LLB-8 | SCHA125RRB-8 |
SCHA125LLB-10 | SCHA125RRB-10 |
SCHA125LLB-12.5 | SCHA125RRB-12.5 |
SCHA125LLB-16 | SCHA125RRB-16 |
SCHA125LLB-20 | SCHA125RRB-20 |
SCHA125LLB-25 | SCHA125RRB-25 |
SCHA125LLB-31.5 | SCHA125RRB-31.5 |
SCHA125LLB-40 | SCHA125RRB-40 |
SCHA125LLB-50 | SCHA125RRB-50 |
SCHA125LLB-63 | SCHA125RRB-63 |
SCHA125LLB-80 | SCHA125RRB-80 |
SCHA125LLB-100 | SCHA125RRB-100 |
SCHA125LLB-125 | SCHA125RRB-125 |
SCHA125LLB-160 | SCHA125RRB-160 |
SCHA125LLB-200 | SCHA125RRB-200 |
SCHA125LLB-250 | SCHA125RRB-250 |
SCHA125LLB-315 | SCHA125RRB-315 |
SCHA160LLB-6.3 | SCHA160RRB-6.3 |
SCHA160LLB-8 | SCHA160RRB-8 |
SCHA160LLB-10 | SCHA160RRB-10 |
SCHA160LLB-12.5 | SCHA160RRB-12.5 |
SCHA160LLB-16 | SCHA160RRB-16 |
SCHA160LLB-20 | SCHA160RRB-20 |
SCHA160LLB-25 | SCHA160RRB-25 |
SCHA160LLB-31.5 | SCHA160RRB-31.5 |
SCHA160LLB-40 | SCHA160RRB-40 |
SCHA160LLB-50 | SCHA160RRB-50 |
SCHA160LLB-63 | SCHA160RRB-63 |
SCHA160LLB-80 | SCHA160RRB-80 |
SCHA160LLB-100 | SCHA160RRB-100 |
SCHA160LLB-125 | SCHA160RRB-125 |
SCHA160LLB-160 | SCHA160RRB-160 |
SCHA160LLB-200 | SCHA160RRB-200 |
SCHA160LLB-250 | SCHA160RRB-250 |
SCHA160LLB-315 | SCHA160RRB-315 |
SCHA200LLB-6.3 | SCHA200RRB-6.3 |
SCHA200LLB-8 | SCHA200RRB-8 |
SCHA200LLB-10 | SCHA200RRB-10 |
SCHA200LLB-12.5 | SCHA200RRB-12.5 |
SCHA200LLB-16 | SCHA200RRB-16 |
SCHA200LLB-20 | SCHA200RRB-20 |
SCHA200LLB-25 | SCHA200RRB-25 |
SCHA200LLB-31.5 | SCHA200RRB-31.5 |
SCHA200LLB-40 | SCHA200RRB-40 |
SCHA200LLB-50 | SCHA200RRB-50 |
SCHA200LLB-63 | SCHA200RRB-63 |
SCHA200LLB-80 | SCHA200RRB-80 |
SCHA200LLB-100 | SCHA200RRB-100 |
SCHA200LLB-125 | SCHA200RRB-125 |
SCHA200LLB-160 | SCHA200RRB-160 |
SCHA200LLB-200 | SCHA200RRB-200 |
SCHA200LLB-250 | SCHA200RRB-250 |
SCHA200LLB-315 | SCHA200RRB-315 |
SCHA225LLB-6.3 | SCHA225RRB-6.3 |
SCHA225LLB-8 | SCHA225RRB-8 |
SCHA225LLB-10 | SCHA225RRB-10 |
SCHA225LLB-12.5 | SCHA225RRB-12.5 |
SCHA225LLB-16 | SCHA225RRB-16 |
SCHA225LLB-20 | SCHA225RRB-20 |
SCHA225LLB-25 | SCHA225RRB-25 |
SCHA225LLB-31.5 | SCHA225RRB-31.5 |
SCHA225LLB-40 | SCHA225RRB-40 |
SCHA225LLB-50 | SCHA225RRB-50 |
SCHA225LLB-63 | SCHA225RRB-63 |
SCHA225LLB-80 | SCHA225RRB-80 |
SCHA225LLB-100 | SCHA225RRB-100 |
SCHA225LLB-125 | SCHA225RRB-125 |
SCHA225LLB-160 | SCHA225RRB-160 |
SCHA225LLB-200 | SCHA225RRB-200 |
SCHA225LLB-250 | SCHA225RRB-250 |
SCHA225LLB-315 | SCHA225RRB-315 |
SCHA250LLB-6.3 | SCHA250RRB-6.3 |
SCHA250LLB-8 | SCHA250RRB-8 |
SCHA250LLB-10 | SCHA250RRB-10 |
SCHA250LLB-12.5 | SCHA250RRB-12.5 |
SCHA250LLB-16 | SCHA250RRB-16 |
SCHA250LLB-20 | SCHA250RRB-20 |
SCHA250LLB-25 | SCHA250RRB-25 |
SCHA250LLB-31.5 | SCHA250RRB-31.5 |
SCHA250LLB-40 | SCHA250RRB-40 |
SCHA250LLB-50 | SCHA250RRB-50 |
SCHA250LLB-63 | SCHA250RRB-63 |
SCHA250LLB-80 | SCHA250RRB-80 |
SCHA250LLB-100 | SCHA250RRB-100 |
SCHA250LLB-125 | SCHA250RRB-125 |
SCHA250LLB-160 | SCHA250RRB-160 |
SCHA250LLB-200 | SCHA250RRB-200 |
SCHA250LLB-250 | SCHA250RRB-250 |
SCHA250LLB-315 | SCHA250RRB-315 |
SCHA280LLB-6.3 | SCHA280RRB-6.3 |
SCHA280LLB-8 | SCHA280RRB-8 |
SCHA280LLB-10 | SCHA280RRB-10 |
SCHA280LLB-12.5 | SCHA280RRB-12.5 |
SCHA280LLB-16 | SCHA280RRB-16 |
SCHA280LLB-20 | SCHA280RRB-20 |
SCHA280LLB-25 | SCHA280RRB-25 |
SCHA280LLB-31.5 | SCHA280RRB-31.5 |
SCHA280LLB-40 | SCHA280RRB-40 |
SCHA280LLB-50 | SCHA280RRB-50 |
SCHA280LLB-63 | SCHA280RRB-63 |
SCHA280LLB-80 | SCHA280RRB-80 |
SCHA280LLB-100 | SCHA280RRB-100 |
SCHA280LLB-125 | SCHA280RRB-125 |
SCHA280LLB-160 | SCHA280RRB-160 |
SCHA280LLB-200 | SCHA280RRB-200 |
SCHA280LLB-250 | SCHA280RRB-250 |
SCHA280LLB-315 | SCHA280RRB-315 |
SCHA320LLB-6.3 | SCHA320RRB-6.3 |
SCHA320LLB-8 | SCHA320RRB-8 |
SCHA320LLB-10 | SCHA320RRB-10 |
SCHA320LLB-12.5 | SCHA320RRB-12.5 |
SCHA320LLB-16 | SCHA320RRB-16 |
SCHA320LLB-20 | SCHA320RRB-20 |
SCHA320LLB-25 | SCHA320RRB-25 |
SCHA320LLB-31.5 | SCHA320RRB-31.5 |
SCHA320LLB-40 | SCHA320RRB-40 |
SCHA320LLB-50 | SCHA320RRB-50 |
SCHA320LLB-63 | SCHA320RRB-63 |
SCHA320LLB-80 | SCHA320RRB-80 |
SCHA320LLB-100 | SCHA320RRB-100 |
SCHA320LLB-125 | SCHA320RRB-125 |
SCHA320LLB-160 | SCHA320RRB-160 |
SCHA320LLB-200 | SCHA320RRB-200 |
SCHA320LLB-250 | SCHA320RRB-250 |
SCHA320LLB-315 | SCHA320RRB-315 |
SCHA360LLB-6.3 | SCHA360RRB-6.3 |
SCHA360LLB-8 | SCHA360RRB-8 |
SCHA360LLB-10 | SCHA360RRB-10 |
SCHA360LLB-12.5 | SCHA360RRB-12.5 |
SCHA360LLB-16 | SCHA360RRB-16 |
SCHA360LLB-20 | SCHA360RRB-20 |
SCHA360LLB-25 | SCHA360RRB-25 |
SCHA360LLB-31.5 | SCHA360RRB-31.5 |
SCHA360LLB-40 | SCHA360RRB-40 |
SCHA360LLB-50 | SCHA360RRB-50 |
SCHA360LLB-63 | SCHA360RRB-63 |
SCHA360LLB-80 | SCHA360RRB-80 |
SCHA360LLB-100 | SCHA360RRB-100 |
SCHA360LLB-125 | SCHA360RRB-125 |
SCHA360LLB-160 | SCHA360RRB-160 |
SCHA360LLB-200 | SCHA360RRB-200 |
SCHA360LLB-250 | SCHA360RRB-250 |
SCHA360LLB-315 | SCHA360RRB-315 |
SCHA400LLB-6.3 | SCHA400RRB-6.3 |
SCHA400LLB-8 | SCHA400RRB-8 |
SCHA400LLB-10 | SCHA400RRB-10 |
SCHA400LLB-12.5 | SCHA400RRB-12.5 |
SCHA400LLB-16 | SCHA400RRB-16 |
SCHA400LLB-20 | SCHA400RRB-20 |
SCHA400LLB-25 | SCHA400RRB-25 |
SCHA400LLB-31.5 | SCHA400RRB-31.5 |
SCHA400LLB-40 | SCHA400RRB-40 |
SCHA400LLB-50 | SCHA400RRB-50 |
SCHA400LLB-63 | SCHA400RRB-63 |
SCHA400LLB-80 | SCHA400RRB-80 |
SCHA400LLB-100 | SCHA400RRB-100 |
SCHA400LLB-125 | SCHA400RRB-125 |
SCHA400LLB-160 | SCHA400RRB-160 |
SCHA400LLB-200 | SCHA400RRB-200 |
SCHA400LLB-250 | SCHA400RRB-250 |
SCHA400LLB-315 | SCHA400RRB-315 |
